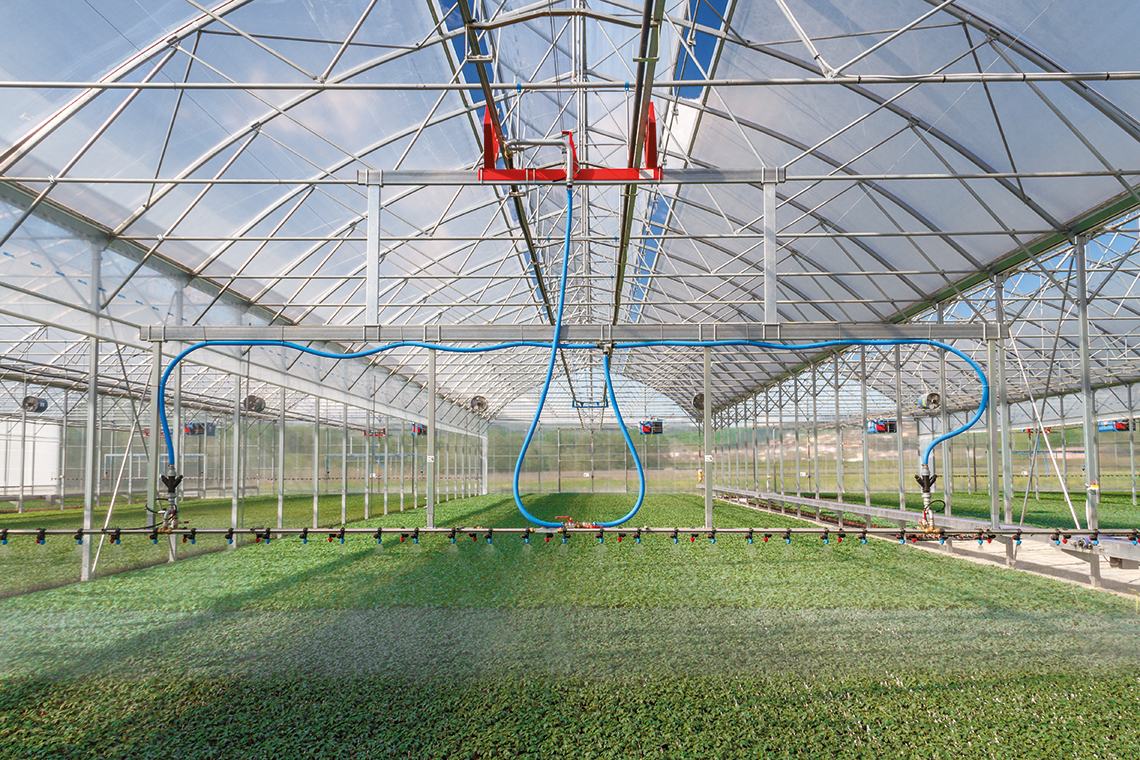

Suspended double rail irrigation boom. Precision in watering, fertilizing and spraying. The trolley wheels are manufactured of long resistant polymer and do not need maintenance.
Boom movement with iron cable; nozzles bar with single, double or triple row mounted on stainless tube; trolley with wheels mounted on bearings; working speeds at request. Modular system assembly, suitable for every kind of structure.
Available as ACCESSORIES: drilled hose; biget and triget nozzles; control up to n. 12 solenoid valves on the bar with wireless system; working speed from 5 to 28 m/min; overturning of irrigation bar with and without winch, for the passage of operating machines in the greenhouse; etc.
ACCESSORIES: independent nozzle complete with valve for side irrigation: fixed type, articulated type or articulated type with stainless steel descent and adjustable height.
ELECTRONIC CONTROL PANEL: remote control (just one remot control can control up to 99 irrigation booms for a working distance of 200 m.); electric control panel (it can be controlled by a PC); available panel with touch-screen controls; etc. MAIN FUNCTIONS: cycle automatic/manual/continuos; speed adjustment; one or two direction irrigation; number of cycles/daily start programmer; zone irrigation; etc.
| TECHNICAL DATA | M.U. | IRMO3 |
|---|---|---|
| SPEED of WORKING (min-max) | m/min | 16 |
| LENGTH of WORKING (max) | mm | 250 |
| WIDTH of WORKING (max) | mm | 13 |
| INTERAXIS of DOUBLE RAIL | mm | 1000 |
| WATER CONNECTION | inches | 1″ o 1″ 1/4 |
| POWER of INSTALLATION | kW | 0,5 |
