Automatic potting machine IA2500 for round or square pots. The exit belt can be set in 3 positions. The soil can be supplied from 3 sides with mechanical shovel; peat hopper 1100 l complete with bulkhead, with bottom belt sliding on rollers; soil recycling system with belt on the bottom.

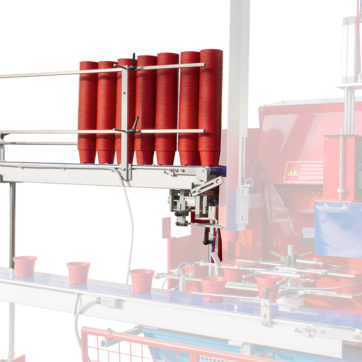

DETAIL: pots denester, with single head version.Complete drilling unit: punch diam. 30 mm and metal drills diam. 40 – 50 – 60 – 70 – 80 – 90 mm; pneumatic pots denester for round or square pots, from 8 to 22 cm; centralised adjustment; exit belt at fixed speed; pot take off arm; kit nr. 4 wheels, diam. 305 – 125 mm.
| TECHNICAL DATA | M.U. | IA2500 |
|---|---|---|
| CAPACITY of HOPPER | l | 1100 |
| HOURLY PRODUCTION (Max) | pots/hour | 2400 |
| LENGTH of BELT with trayholder | mm | 2600 |
| WEIGHT | kg | 538 |
| POWER of INSTALLATION | kW | 2 |
| CONSUMPTION of AIR (max) | l/min | 135 |
| HEIGHT of WORKING | mm | 980 |
| WHEELS FOR TRANSPORT | n | 4 |
